Liftgear

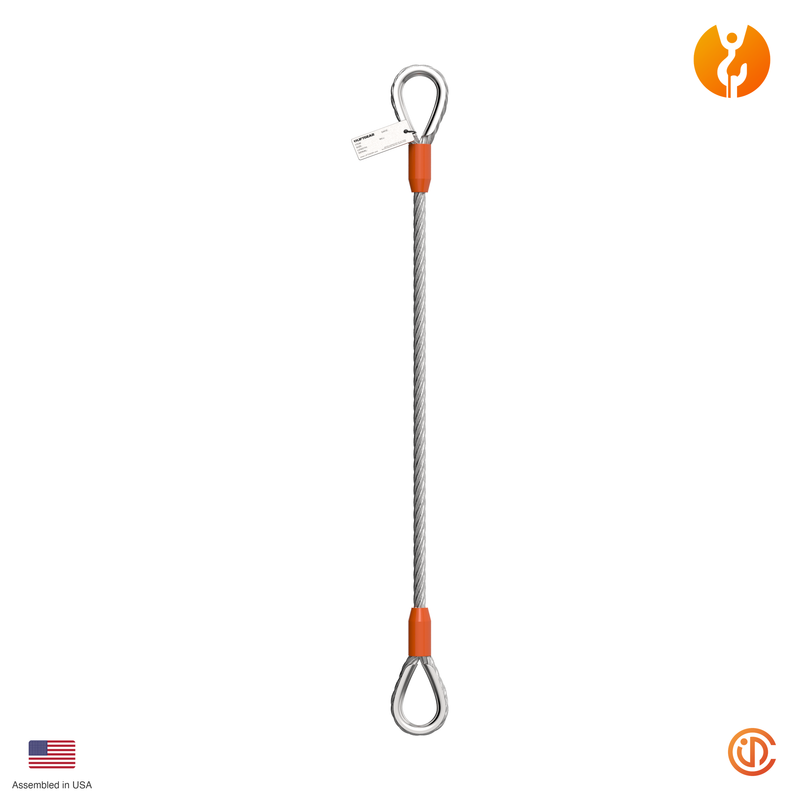

1" Single Leg Thimble-Thimble Wire Rope Sling

SKU: 410-T081-B05K
$114.14
View Details
Qty:
Your rigging equipment is now smart, with Certfid.

Liftgear's Wire Rope Slings ship with Certfid. Tap the tag with a phone and its compliance and history is instantly available.

Complete the Assembly

This sling
1" Single Leg Thimble-Thimble Wire Rope Sling
$114.14
Shackle
1" Super Strong Bolt Type Anchor Shackles 10 TON-M854G
$159.48
Assembly rated— for the matched assembly
$273.62

Order Sheet

SKULengthPriceQty
410-T081-B05K5'$114.14
410-T081-B06K6'$119.31
410-T081-B07K7'$124.48
410-T081-B08K8'$129.65
410-T081-B10K10'$139.98
410-T081-B12K12'$150.32
410-T081-B15K15'$165.82
410-T081-B20K20'$191.66
410-T081-B05K$114.14
Length: 5'
410-T081-B06K$119.31
Length: 6'
410-T081-B07K$124.48
Length: 7'
410-T081-B08K$129.65
Length: 8'
410-T081-B10K$139.98
Length: 10'
410-T081-B12K$150.32
Length: 12'
410-T081-B15K$165.82
Length: 15'
410-T081-B20K$191.66
Length: 20'
0 items$0.00
Working Load Limit 9.8 T VERTICAL
Dia 1 in
Legs 1
Fit Thimble-Thimble
6×36WS IWRC

Single leg wire rope sling with heavy duty thimble eyes at both ends, mechanically spliced flemish eye terminations. 1” diameter, 6×36WS Class IWRC bright wire rope construction, EIPS grade. Proof tested to 2× rated capacity with serialized tag and test certificate. Galvanized finish available on request.

Reach 5 – 20 FT
Top THIMBLE EYE
Bottom THIMBLE EYE
Termination FLEMISH EYE SPLICE
Core INDEPENDENT (IWRC)
Finish BRIGHT (GALV. AVAIL.)
Grade EIPS
Safety Factor 5 : 1
Proof Test 2× WLL
Weight ~1.85 LB/FT (ROPE)

Working Load Limits · Single Leg

Dia. Vertical Choker Basket Thimble W × L Min. Length
3/8” 1.4 1.1 2.8 1-1/8” × 2-1/8” 2'
1/2” 2.5 1.9 5 1-1/2” × 2-3/4” 2' 6”
5/8” 3.9 2.9 7.8 1-3/4” × 3-1/4” 3'
3/4” 5.6 4.1 11 2” × 3-3/4” 3' 6”
7/8” 7.6 5.6 15 2-1/4” × 4-1/4” 4'
1” 9.8 7.2 20 2-1/2” × 4-1/2” 4' 6”
1-1/4” 15 11 30 2-7/8” × 5-1/8” 5' 6”
1-1/2” 21 16 42 3-1/2” × 6-1/4” 7'
⚠

Never exceed the rated Working Load Limit. Choker and basket ratings assume a vertical pull. Reduce capacity for angular loading and verify the WLL for your hitch before each lift. Inspect before every use per ASME B30.9.

ASME B30.9 │ OSHA 29 CFR 1926.251 │ WSTDA-WRS-1 Liftgear Houston, Texas Cert lookup → certfid.io/lookup
